Abbott Architect c4000 Chemistry Analyzer
Item# 0-AB-ARCHC4000-ER
The Abbott Architect c4000 Chemistry Analyzer, provided by Abbott Diagnostics
Equipment Support
Service Options
Consumables
Quality Controls
Service Parts
Package Size: EA
Refurbished Abbott Architect c4000 Chemistry Analyzer
Abbott's mid-volume Architect chemistry analyzer, rebuilt Down-To-Frame® to original specification. Pay up to 70% less than new, starting with $0 down.
The Abbott Architect c4000 runs photometric, turbidimetric and ICT electrolyte testing at up to 800 tests an hour, with 100 samples and 90 refrigerated reagent positions onboard. Its software, sample carriers and reagent cartridges match the rest of the Architect family. Refurbished by Diamond, it costs up to 70% less than new.
- check_circleSpend up to 70% less than you would on a new Architect c4000.
- check_circleLoad 100 samples on the robotic sample handler, with 35 priority positions for STAT work.
- check_circleRun the same software, sample carriers and reagent cartridges as the other Architect analyzers in your lab.
- check_circleAdd an Architect i1000SR later and turn your c4000 into a ci4100.
- check_circleFinance up to $2 million with $0 down, and lower the price further by trading in the analyzer you're replacing.
- check_circleGet an analyzer rebuilt Down-To-Frame® by an FDA-registered, ISO 13485:2016 certified refurbisher, then installed, verified and serviced by our own engineers.
How the Abbott Architect c4000 analyzer runs your chemistry menu
The c4000 runs photometric, turbidimetric and potentiometric tests in one floor-standing unit, controlled from Abbott's System Control Center. Abbott builds every Architect analyzer on identical technology, reagents and assay protocols, so a c4000 reports results equivalent to a c8000 or c16000.
Architect c4000 vs. c8000 vs. Alinity c: which fits your volume?
The Architect c4000 runs up to 800 tests an hour, the Architect c8000 up to 1,200 and the Alinity c up to 1,350. The c4000 takes about 15.6 sq ft of floor, close to the Alinity c and about 42% less than a c8000.
- Choose the c4000 when your chemistry volume fits within 800 tests an hour, your floor space is tight, or you want a backup analyzer that runs the same software and reagents as your c8000.
- Choose the c8000 when you need up to 1,200 tests an hour from a 215-sample load, or you plan to pair it with an i2000SR as a ci8200.
- Choose the Alinity c when you want Abbott's current chemistry platform, up to 1,350 tests an hour, and the option to add modules later.
Like every Architect chemistry analyzer, the c4000 counts each sodium, potassium and chloride result from the ICT module as a test, so your real hourly output depends on how much of your menu is electrolytes.
| Spec | Architect c4000 | Architect c8000 | Alinity c |
|---|---|---|---|
| Maximum throughput | Up to 800 tests/hour | Up to 1,200 tests/hour | Up to 1,350 tests/hour |
| Sample capacity | 100 (35 priority positions) | 215 | 150 |
| Refrigerated reagent positions | Up to 90, plus ICT | Up to 121, plus ICT | Up to 70, plus ICT |
| H x W x D | 49 x 63 x 36 in (125.1 x 160 x 90.7 cm) | 48 x 79 x 49 in (121.9 x 200.6 x 124.5 cm) | 53 x 47 x 46 in (134 x 119 x 117 cm) |
| Footprint | 15.6 sq ft (1.45 m²) | 26.9 sq ft (2.50 m²) | 15.0 sq ft (1.39 m²) |
| Weight | 1,132 lb (513.5 kg) | 1,425 lb (646.4 kg) | 1,570 lb (712 kg) |
| Water | 15 L/hr normal, 25 L/hr max | 25 L/hr normal | 27 L/hr average, under 30 L/hr max |
| Power | 180 to 264 V, 20 A | 180 to 264 V, 20 A | 180 to 264 V, 16 A, plus 90 to 264 V for the System Control Module |
Run the c4000 on its own or build an Architect ci4100
The c4000 runs on its own as a chemistry analyzer. Add an Architect i1000SR immunoassay analyzer and the two become a ci4100, one system run from one System Control Center.
Standalone c4000. Run up to 800 chemistry tests an hour from 100 samples and 90 refrigerated reagent positions.
Architect ci4100. Join chemistry and immunoassay to run up to 900 tests an hour, 800 chemistry and 100 immunoassay, with 180 samples and 115 refrigerated reagent positions onboard.
Your analyzer plus a refurbished partner. If you already own a c4000 or an i1000SR, we'll supply and install the other half of the ci4100.
A backup for a larger Architect lab. Put a c4000 beside your c8000 or ci8200. It takes the same reagent cartridges and sample carriers, so your techs move work between them without changing how they load.
ConfigurationArchitect c4000
- Up to (tests/hour)
- 800
- Sample capacity
- 100
- Refrigerated reagent positions
- 90, plus ICT
- H x W x D
- 49 x 63 x 36 in (125.1 x 160 x 90.7 cm)
- Weight
- 1,132 lb (513.5 kg)
ConfigurationArchitect i1000SR
- Up to (tests/hour)
- 100
- Sample capacity
- 65
- Refrigerated reagent positions
- 25
- H x W x D
- 49 x 59 x 30 in (124.5 x 149.9 x 76.2 cm)
- Weight
- 636 lb (288 kg)
ConfigurationArchitect ci4100
- Up to (tests/hour)
- 900
- Sample capacity
- 180
- Refrigerated reagent positions
- 115, plus ICT
- H x W x D
- 49 x 111 x 36 in (125.1 x 281.2 x 90.7 cm)
- Weight
- 1,677 lb (760.7 kg)
Plan floor space, power and water for your Architect c4000
The c4000 stands 125 cm (49 in) tall on a 160 x 91 cm (63 x 36 in) footprint and weighs 514 kg (1,132 lb). If you plan to add immunoassay later, you’ll need a total available space of 281 cm (111 in) wide.
- electrical_servicesSupply AC power at 180 to 264 V, 47 to 63 Hz, on a 20 A circuit.
- water_dropPlumb deionized water. The analyzer uses about 15 L (4.0 gal) an hour in normal operation and up to 25 L (6.6 gal) an hour at peak.
- thermostatSize your HVAC for about 3,050 BTU an hour from the analyzer in running mode, plus up to 389 BTU an hour from the System Control Center.
- lanConnect to your LIS over a bidirectional RS-232 serial interface with host query.
| Requirement | Value |
|---|---|
| Power | AC 180 to 264 V, 47 to 63 Hz, 20 A |
| Water | Deionized, 15 L/hr (4.0 gal/hr) normal, 25 L/hr (6.6 gal/hr) max |
| Heat output | 3,050 BTU/hr in running mode, plus up to 389 BTU/hr for the System Control Center |
| Host interface | Bidirectional RS-232 serial, host query option |
| Dimensions (H x W x D) | 49 x 63 x 36 in (125.1 x 160 x 90.7 cm) |
| Weight | 1,132 lb (513.5 kg) |
Send us your room layout and utilities, and we'll check them against the c4000 before you commit.
Which labs buy a refurbished Abbott Architect c4000?
The c4000 suits labs whose chemistry volume fits within 800 tests an hour, and labs that already run Architect.
Community and smaller hospital labs. Run the c4000 as your main chemistry analyzer, with 35 priority positions for ED and inpatient STAT samples.
Larger Architect labs that need a backup. Keep a c4000 beside your other Abbott Architect analyzers. The technology is identical, including reagents and assay protocols, so all analyzers report equivalent results.
Labs replacing an aging c4000 or ci4100. Swap in a rebuilt unit and keep the methods and workflows your staff already know.
Labs staying on Architect. Add capacity on the platform you've validated, and move to Alinity on your own schedule.
Labs that want reagent flexibility. Run alternative reagents on certain tests where your methods allow.
Abbott Architect c4000 price: new vs. refurbished
Abbott prices a new Architect c4000 through its sales contracts, often bundled into a reagent agreement that spreads the analyzer's cost across your per-test pricing. We price each refurbished c4000 individually, starting from its year of manufacture. Whichever unit fits your lab, you pay up to 70% less than new and own it outright.
What sets the price of your c4000
- The analyzer's year of manufacture.
- Whether you buy a standalone c4000 or add immunoassay.
- Installation, assay programming and verification in your lab.
- Operator training.
- The service plan you choose.
- Freight and rigging to your site.
- The trade-in value of the analyzer you're retiring.
Why buy a refurbished c4000 instead of new?
Why buy a refurbished Abbott Architect c4000 from Diamond Diagnostics?
You deal with one company for the rebuild, the installation and every service call after that, and our own engineers handle each one.
Rebuilt by an FDA-registered, ISO 13485:2016 certified refurbisher
Diamond is registered with the FDA, and our US and EU operations are certified to ISO 9001:2015 and ISO 13485:2016, the quality management standard for medical device manufacturers. Independent auditors review our procedures against both.

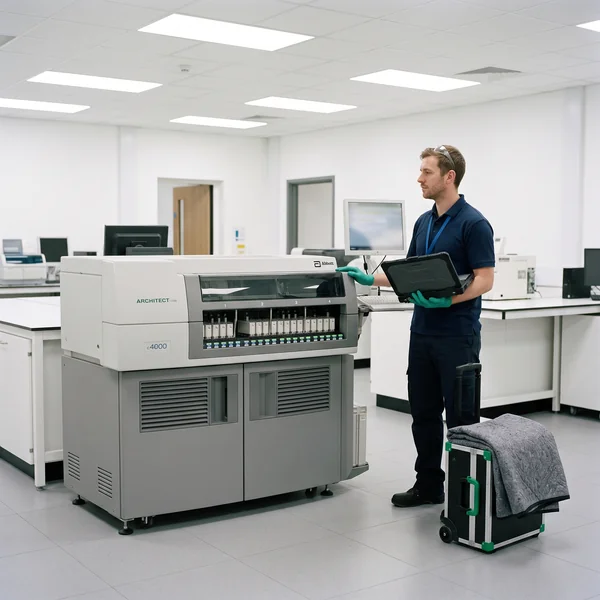

Installed and verified by our engineers
We install your c4000, program your assays and verify them before you test patient samples. Once it's running, you can book on-site operator training on the instrument, your menu, adding parameters, preventive maintenance and operator-level troubleshooting, with an hour set aside for your team's questions.
Pay for your c4000 over time, starting at $0 down
- Lease or finance up to $2 million.
- Apply for up to $400,000 with a credit application and nothing else.
- Start at $0 down with low introductory payments.
- Expect a fast credit decision and a broad choice of terms.
- Fold shipping and other purchase costs into the same financing.
Trade in your current chemistry analyzer
Replacing an older chemistry analyzer? We'll buy it and take its value off your c4000. We deinstall it, decontaminate it, arrange the pickup and pay the freight, so you don't store it or pay to dispose of it.
handymanService your c4000 with Diamond engineers
Every c4000 we sell qualifies for our field service coverage. If you already own a c4000, we'll qualify it and cover it the same way.
- Pick one of four field service plans, from Platinum, with next-day response and 24/7 phone support, to Bronze, with first-available scheduling.
- Keep to the manufacturer's preventive maintenance schedule at a fixed cost, booked around your lab's hours.
- Reach clinical engineers who specialize in your model by phone or email.
- Add assay programming, relocation, decommissioning or decontamination when you need them.
Frequently asked questions about the Abbott Architect c4000
How many tests per hour does the Abbott Architect c4000 run?
Up to 800, counting photometric, turbidimetric and ICT electrolyte results. Your actual output depends on your test mix.
How much does an Abbott Architect c4000 cost?
Abbott sets the price of a new c4000 by contract, often inside a reagent agreement. Refurbished by Diamond, a c4000 costs up to 70% less than new. We price each unit individually, based on its year of manufacture, the configuration and the services you add.
What's the difference between the Architect c4000 and c8000?
A c8000 handles up to 1,200 tests an hour and loads 215 samples on a 79 x 49 in footprint. A c4000 handles up to 800 and loads 100 samples on 63 x 36 in. Both run the same Architect software, reagents and assay protocols.
Should I buy an Architect c4000 or an Alinity c?
The Alinity c is Abbott's current chemistry platform, running up to 1,350 tests an hour with the option to add modules. The c4000 runs up to 800 tests an hour and matches the Architect analyzers you may already own. If you run Architect today and your volume fits within 800 tests an hour, the c4000 keeps your lab on one platform.
Can I turn my c4000 into an Architect ci4100?
Yes. We pair a refurbished i1000SR with your c4000 and install them together as a ci4100, which runs up to 900 tests an hour.
Can the c4000 run non-Abbott reagents?
On certain tests, yes, where your methods allow. Ask us which tests on your menu qualify.
What power and water does the c4000 need?
AC power at 180 to 264 V and 47 to 63 Hz on a 20 A circuit, plus deionized water at about 15 L (4.0 gal) an hour, rising to 25 L (6.6 gal) at peak.
What financing is available for a refurbished c4000?
You can lease or finance up to $2 million with $0 down and low introductory payments. A credit application alone covers up to $400,000, and shipping can go into the financed amount.
Will you take my old analyzer as a trade-in?
Yes. We buy the analyzer you're replacing, apply its value to your c4000, and handle the deinstallation, decontamination, pickup and freight.
Do you install the c4000 and train our staff?
Yes. Our engineers install it and program and verify your assays before you run patient samples. You can add on-site operator training once installation is done.
Can you service a c4000 we bought somewhere else?
Yes. After we qualify it, it's eligible for the same field service plans as the c4000s we sell.
Can I get Architect c4000 reagents from Diamond?
Yes. Reagents and consumables for the c4000 are available through Diamond Diagnostics.
Down-To-Frame Refurbishment Process
Upgrading or Adding Equipment to your lab?
Save up to 70% with refurbished equipment from Abbott, Alfa Wasserman, Beckman, Biomerieux, Biotechnia, Hitachi, Horiba ABX, IL, J&J, Radiometer, Randox, Roche, Siemens, Stago, Sysmex, Thermo and Tosoh.
LAS, through its entity Diamond Diagnostics, is the only USA FDA registered, ISO Certified and Down-To-Frame® refurbisher of Chemistry, Immunology, Hematology, Caogulation and Blood Gas equipment. Inquire today for pricing and Details.
Every analyzer undergoes a systemized, rigorous and unique Down-To-Frame® Refurbishment process to rebuild each analyzer to its original specification and intended use.
Disassembly & Decommission
- System decommissioned from laboratory and decontaminated
- Preliminary inspection of functionality
- System disassembled Down-To-Frame®
Aesthetic Restoration
- All outer covers, chassis and internal surfaces stripped, sand blasted and prepared for painting
- All prepared surfaces primed and painted with 3 part compound, color matched automotive quality paint
- All original logos and signage are replaced in original appearance
Refurbishment & Reassembly
- All mechanical, pneumatic, electronic assemblies disassembled, cleaned, restored, verified and reassembled, replaced where needed
- Disposable components replaced with new components
- New components include: tubing, fittings, syringes, seals, check valves, probes, reagent lines, waste assemblies and similar items
- System completely reassembled into its original condition in accordance to protocol and established specifications
Diagnostics & Troubleshooting
- Assembly Functions & System errors assessed, troubleshooting and repair conducted
- Full system diagnostic testing conducted
- System successfully calibrated with certified calibrator materials to ensure proper functionality
Performance Validation
- Rigorous Multi-Level Quality Control testing conducted on established parameters using certified control material
- Specific parameter testing available upon request
- System checked for power stability, software revisions and other upgrades
Final Packing
- Required peripherals for operation refurbished or provided new as needed
- System properly flushed, drained, protected and prepared for storage
- System professionally crated with heat-treated and non-coniferous wood for international transit
Performance & Configuration
Assays
81 Total Assays Tested
***********(***), *********(*****), ***************(****), *********(******), ***************(***), ******(***), *******(****), ***********(***), ************(******), *******(*****), **********(*****), *******(***), ***************(*****), **********(******), *******(***), ********(****), *********(***), ***************(*****), *************(***), *************(***), **********(******), ******(****), ************(***), ***********(***), ******(***), **********(******), *******(******), *************(****), **************(*****), ***********(*****), ******(***), *********(*****), *************(***), ************(******), ******(****), **************(*****), **************(******), ***********(***), *********(******), ************(*****), ********(***), ******(*****), ********(******), **********(*****), ********(******), ********(*****), ***************(******), **********(***), **********(****), ************(***), ********(*****), ***********(******), **********(******), ***********(*****), **********(***), *******(******), **********(******), **************(***), ************(******), *******(****), ***********(******), **************(******), *******(******), *******(****), ********(*****), ***************(****), *************(*****), *******(****), **************(******), ************(*****), *********(****), **********(***), **************(***), ************(*****), ***********(*****), **************(***), ********(****), ********(***), *************(*****), ******(***), **********(*****)
Technical Specifications
| Private Labeled by: | Toshiba Medical (now Canon Medical Systems) |
| Private Label Source Model: | TO-C4000 |
| Series: | Architect |
| CLIA Complexity: | Moderate |
| Sample Types: | CSF, Plasma, Urine, Serum, Whole Blood |
| Number of Assays: | 81 |
| Maximum Throughput: | 800 tests/hour |
| Sample Size Min: | 1.5 μL |
| Direct Sample (STAT): | Yes |
| Auto Sample Handling: | Yes |
| Sample Input Type: | Sample Cup Sample Tube |
| Reagent Type: | Liquid |
| Reagent System: | Partial Open |
| Reagent Capacity: | 90 |
| On-Board Refrigeration: | Yes |
| Configuration: | Floor Model |
| Height: | 125 cm (49 in) |
| Width: | 160 cm (63 in) |
| Depth: | 91 cm (36 in) |
| Weight: | 514 kg (1130 lb) |
| Water Requirement: | Yes |
| Water OnBoard Supply: | No |
| Water Consumption: | 15 L/hour normal, 25 L/hour max (L/hour) |
| Power Supply: | 220V |
| Point Of Care: | No |
All units sold by LAS or units qualified by LAS are eligible for Field Service coverage. Service plans are the best way to maximize your instrument investment and avoid the high costs associated with instrument failure. Our plans are designed to support optimum instrument performance, ensure reproducible results and minimize down-time. Our service plans provide a timely response from our dedicated engineers who are certified on an ongoing basis to ensure top-notch results, even in the most complex laboratory environments.
: Included
: Chargeable
: None
* Contact for more details
Preventive Maintenance
For the laboratory looking to manage manufacture recommended preventative maintenance (PM) schedules for instrumentation at a fixed cost. The PM Service Plan will increase the reliability and reduce the risk and costs of unplanned maintenance and equipment downtime. Our plans are scheduled and planned around your specific instrument and operational needs.
Depot Repair Per Diem
For the laboratory looking to maximize the life of their instrumentation while effectively managing repair costs. The Depot Repair is a per diem plan designed for any size instrument needing major repair, complete rebuild or recycling.
Annual Depot Repair
For the laboratory looking to maximize the life of their instrumentation while effectively managing repair costs. Annual Depot Repair is an annual based plan designed for small to mid-sized instruments needing maintenance or repairs and can be easily shipped by your local carrier to our Depot Service Facility in Holliston, MA.
Phone Support
For the laboratory employing qualified service professionals, the Virtual Plan may be a suitable choice to replace or supplement Field Services. The Virtual plan offers its customers support by email and telephone, within business hours with communication directly with Clinical Engineering staff specialized in the model of instrumentation that the laboratory is utilizing. The Virtual Plan is annual.
Click here to learn more.
