Abbott Alinity CI Chemistry And Immunology Analyzer
Item# 0-AB-ALINITYCI-ER
The Abbott Alinity Ci Chemistry Analyzer, provided by Abbott Diagnostics
Equipment Support
Service Options
Consumables
Quality Controls
Service Parts
Package Size: EA
Refurbished Abbott Alinity ci Chemistry and Immunoassay Analyzer
An Alinity c chemistry module and an Alinity i immunoassay module run from one System Control Module, rebuilt Down-To-Frame® to original specification. Spend up to 70% less than new, with $0-down financing.
The Alinity ci runs photometric chemistry, ICT electrolytes and chemiluminescent immunoassays at up to 1,550 tests an hour on 2.33 m² (about 25 sq ft) of floor. One System Control Module runs both modules, so your techs work from one screen. Buy it refurbished from Diamond and your capital cost drops by up to 70% compared with a new system from Abbott.
- check_circlePay up to 70% less than you would for a new Alinity ci from Abbott.
- check_circleRun chemistry, electrolytes and immunoassay on one system, with 117 refrigerated reagent cartridges and 300 samples onboard.
- check_circlePair the Alinity c or Alinity i you already own with a refurbished module to complete your ci.
- check_circleFinance up to $2 million with $0 down, and put shipping into the same payments.
- check_circleTrade in the analyzers you're consolidating and apply their value to the ci.
- check_circleGet both modules rebuilt Down-To-Frame® by an FDA-registered, ISO 13485:2016 certified refurbisher, then installed, verified and serviced by our own engineers.
How the Abbott Alinity ci analyzer runs chemistry and immunoassay together
The Alinity ci puts two processing modules side by side under one System Control Module. The Alinity c side measures photometric chemistry plus sodium, potassium and chloride. The Alinity i side runs chemiluminescent microparticle immunoassays (CMIA) with Abbott's CHEMIFLEX detection.
The Alinity c chemistry module
The Alinity i immunoassay module
Across the whole system
Abbott Alinity ci throughput. How many tests per hour?
Each module has its own reagent and sample carousels and pipettors, so chemistry and immunoassay work run in parallel.
- Chemistry output depends on your electrolyte share. Photometric assays run at up to 900 tests an hour. The ICT module makes up the rest of the 1,350 rating, because each sodium, potassium and chloride result counts as a test.
- Immunoassay output tops out at 200 tests an hour per module. If your immunoassay volume outgrows one Alinity i, a second module doubles that capacity.
- Continuous loading keeps both modules testing while your techs restock reagents and supplies.
Abbott rates the Alinity ci at up to 665 tests an hour per square meter of floor. The Architect ci8200 runs up to 1,400 tests an hour across two units 79 and 61 inches wide. The Alinity ci runs up to 1,550 in a system 78 inches wide.
One System Control Module runs up to four Alinity modules, and there are up to 14 configurations. Adding a second chemistry module to make an Alinity cic and raises capacity to 2,900 tests an hour.
| Configuration | Modules | Up to (tests/hour) |
|---|---|---|
| Alinity ci | One Alinity c and one Alinity i | 1,550 |
| Chemistry share of an Alinity ci | Alinity c | 1,350 (900 photometric) |
| Immunoassay share of an Alinity ci | Alinity i | 200 |
| Alinity cic | Two Alinity c and one Alinity i | 2,900 |
| Architect ci8200, for comparison | Architect c8000 and i2000SR | 1,400 |
Configure your Alinity ci around the analyzers you already run
Every Alinity ci starts with one Alinity c and one Alinity i on a single System Control Module. You can build out to four modules as your volumes change.
Complete Alinity ci. We supply both modules and the System Control Module, rebuilt and installed together.
Your Alinity c plus a refurbished Alinity i. Keep the chemistry analyzer your staff already run, and add immunoassay without replacing it.
Your Alinity i plus a refurbished Alinity c. Bring chemistry and electrolytes onto the immunoassay system you already own.
Larger ci-series systems. Add a second chemistry module to make an Alinity cic, with 187 reagent cartridges and 450 samples onboard, or build other combinations up to four modules.
Lab automation. Connect the system to Abbott's ACCELERATOR a3600 or to one of the many third-party tracks.
ConfigurationAlinity ci
- Reagent cartridges onboard
- 117, plus ICT
- Sample capacity
- 300
- H x W x D
- 134 x 199 x 117 cm (53 x 78 x 46 in)
- Footprint
- 2.33 m² (25.1 sq ft)
- Weight
- 1,160 kg (2,557 lb)
ConfigurationAlinity cic
- Reagent cartridges onboard
- 187, plus ICT
- Sample capacity
- 450
- H x W x D
- 134 x 280 x 117 cm (53 x 110 x 46 in)
- Footprint
- 3.28 m² (35.3 sq ft)
- Weight
- 1,697 kg (3,741 lb)
ConfigurationAlinity c module alone
- Reagent cartridges onboard
- 70, plus ICT
- Sample capacity
- 150
- H x W x D
- 134 x 119 x 117 cm (53 x 47 x 46 in)
- Footprint
- 1.39 m² (15.0 sq ft)
- Weight
- 712 kg (1,570 lb)
ConfigurationAlinity i module alone
- Reagent cartridges onboard
- 47
- Sample capacity
- 150
- H x W x D
- 134 x 119 x 117 cm (53 x 47 x 46 in)
- Footprint
- 1.39 m² (15.0 sq ft)
- Weight
- 624 kg (1,376 lb)
Plan floor space, power and water for your Alinity ci
An Alinity ci measures 134 cm (53 in) tall, 199 cm (78 in) wide and 117 cm (46 in) deep, and Abbott lists the system at 1,160 kg (2,557 lb). Leave room at the end of the run if you expect to add a third module later.
- electrical_servicesGive each processing module its own 180 to 264 V, 16 A supply, and run the System Control Module on 90 to 264 V, 16 A.
- water_dropSupply about 37 L (9.8 gal) of water an hour on average. Use can reach 60 L (15.9 gal) an hour for up to two minutes while the wash buffer dilution assembly primes.
- recyclingRoute waste to a drain or collect it onboard.
- thermostatSize your HVAC for an average heat output of 3,639 Btu across both modules during processing.
- volume_downExpect about 56 dBA at 1 meter from the chemistry module and about 63 dBA from the immunoassay module.
| Requirement | Value |
|---|---|
| Processing module power | 180 to 264 V, 16 A, for each module |
| System Control Module power | 90 to 264 V, 16 A |
| Water use, average | 37 L/hr (9.8 gal/hr) or less, about 27 L/hr for chemistry and under 10 L/hr for immunoassay |
| Water use, peak | Under 60 L/hr (15.9 gal/hr), for up to two minutes while the wash buffer dilution assembly primes |
| Waste | Collected onboard or routed to a drain |
| Heat output during processing | Average 3,639 Btu per hour |
| Noise at 1 m | 55.9 dBA (chemistry), 63.4 dBA (immunoassay) |
| Host interface | HL7 or ASTM, bidirectional |
| Lab automation | ACCELERATOR a3600 |
Send us your room dimensions and the utilities you have, and we'll check them against the configuration you're planning.
Which labs buy a refurbished Abbott Alinity ci?
These labs get the most from a refurbished ci.
Hospital core labs consolidating two analyzers. Move chemistry, electrolytes and immunoassay onto one system run from one screen, and free up the floor the second analyzer took.
Labs moving off Architect ci4100 or ci8200. Abbott built Alinity assays on its Architect assay technology, so results compare across the platforms. A five-year review of QC data found stable high-sensitivity troponin I performance on Architect ci4100, Architect i2000SR and Alinity ci analyzers.
Labs that already own half the system. Add the module you're missing to your existing Alinity analyzer and your staff keep the software and screens they know.
Labs with heavy ED and cardiac volume. Run STAT high-sensitivity troponin I and NT-proBNP on the immunoassay side while the chemistry side handles metabolic panels, with fixed STAT positions for urgent samples.
Labs short on space. Run up to more chemistry and immunoassay tests an hour in a smaller footprint.
Abbott Alinity ci price. New vs. refurbished
Abbott quotes new Alinity ci systems privately, contract by contract, and often ties the instrument to a reagent agreement that folds its cost into what you pay per test. We price each refurbished Alinity ci individually, because every module differs in year of manufacture and configuration. Whatever you buy, you pay up to 70% less than new and the system belongs to you.
What goes into your Alinity ci quote
- The year of manufacture of each module.
- Whether you need the complete system or one module to pair with yours.
- The configuration, from a standard ci to a larger ci-series system.
- Installation, assay programming and verification for both chemistry and immunoassay.
- Operator training.
- The service plan you pick.
- Freight and rigging for two modules.
- The trade-in value of the analyzers you're retiring.
Why buy a refurbished Alinity ci instead of new?
Get a quote for your Alinity ci
Tell us which Alinity modules you already own, your chemistry and immunoassay volumes and when you need the system running, and we'll quote the configuration that fits. We can show that quote as a monthly payment too, starting with $0 down and low introductory payments.
Why buy a refurbished Abbott Alinity ci from Diamond Diagnostics?
One team handles your Alinity ci from teardown to service calls. We rebuild both modules, validate them, install the system and send our own engineers when it needs attention.
FDA-registered and ISO 13485:2016 certified
Diamond is registered with the FDA as a refurbisher, and our sites in the US and the EU hold ISO 9001:2015 and ISO 13485:2016 certification. ISO 13485 is the quality standard written for medical device makers, and outside auditors check our processes against both standards.

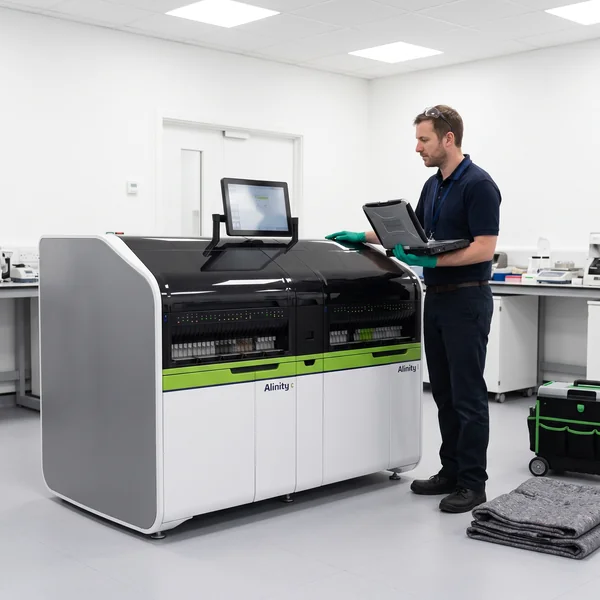

Installation and assay verification for both modules
Our engineers install the Alinity ci, program your chemistry and immunoassay menus and verify both before you report patient results. Following installation, we offer on-site operator training on the instrument and menu, adding parameters, preventive maintenance and operator-level troubleshooting, plus an hour of open Q&A.
$0-down financing for your Alinity ci
- Finance or lease purchases of up to $2 million.
- Use a credit application alone for amounts up to $400,000.
- Pay nothing down and start with low introductory payments.
- Get a quick credit decision and broad term options.
- Include shipping and other purchase costs in the financing.
Trade in the analyzers your Alinity ci replaces
Consolidating a chemistry analyzer and an immunoassay analyzer onto one ci? We'll buy both and credit their value against your purchase. Our team deinstalls and decontaminates them, books the pickup and covers the freight, so nothing sits in storage or costs you a disposal fee.
handymanField service from our own engineers
Every Alinity ci we sell is eligible for field service from our engineers. Bought yours elsewhere? We qualify it, and it becomes eligible for the same coverage.
- Four field service plans range from Platinum, with next-day response and round-the-clock phone support, to Bronze, with first-available scheduling.
- Preventive maintenance follows the manufacturer's schedule at a fixed cost, booked around your lab.
- Phone and email support comes from clinical engineers who specialize in your model.
- Assay programming, relocation, decommissioning and decontamination are available when you need them.
Frequently asked questions about the Abbott Alinity ci
How many tests per hour does the Abbott Alinity ci run?
Up to 1,550 tests an hour, split between up to 1,350 on the chemistry module and up to 200 on the immunoassay module.
How much does an Abbott Alinity ci cost?
Abbott quotes new systems privately, by contract. We price each refurbished Alinity ci individually, based on each module's year of manufacture, whether you need both modules, the configuration and the services you add. It runs up to 70% below new.
What's the difference between the Alinity c, Alinity i and Alinity ci?
The Alinity c is the chemistry module, and the Alinity i is the immunoassay module. The Alinity ci joins one of each under a single System Control Module.
I already own an Alinity c. Can you turn it into an Alinity ci?
Yes. We pair a refurbished Alinity i with your Alinity c and install them together as a ci. If you own an Alinity i, we add a refurbished Alinity c instead.
How does the Alinity ci compare with the Architect ci8200?
The ci8200 runs up to 1,400 tests an hour across two units 79 and 61 inches wide. The Alinity ci runs up to 1,550 in a system 78 inches wide, and Abbott built Alinity assays on its Architect assay technology, so results compare across both.
What immunoassay tests run on the Alinity ci?
Abbott's Alinity i menu covers cardiac, thyroid, fertility, oncology, hepatitis, retrovirus, therapeutic drug monitoring and transplant testing, including STAT high-sensitivity troponin I and NT-proBNP. Ask us for the list of tests run on the unit in stock.
Does biotin interfere with Alinity i immunoassays?
Abbott designs its Alinity i assays without a streptavidin capture step, which keeps biotin from interfering with results.
What power and water does the Alinity ci need?
Each processing module needs its own 180 to 264 V, 16 A supply, and the System Control Module runs on 90 to 264 V. Water use averages about 37 L (9.8 gal) an hour, and waste goes to a drain or onboard collection.
What financing is available for a refurbished Alinity ci?
Purchases up to $2 million can be leased or financed with $0 down and low introductory payments. Amounts up to $400,000 need only a credit application, and shipping can go into the financing.
Will you take our current analyzers in trade?
Yes. We buy the chemistry and immunoassay analyzers you're retiring, credit them against your Alinity ci, and handle deinstallation, decontamination, pickup and freight.
Do you install the Alinity ci and train our staff?
Yes. Our engineers install both modules, program and verify your chemistry and immunoassay tests, and offer on-site operator training once the system is running.
Can you service an Alinity ci we didn't buy from you?
Yes. After we qualify it, it's eligible for our field service plans.
Can I get Alinity ci reagents from Diamond?
Yes. We supply reagents and consumables for both the chemistry and immunoassay modules.
Down-To-Frame Refurbishment Process
Upgrading or Adding Equipment to your lab?
Save up to 70% with refurbished equipment from Abbott, Alfa Wasserman, Beckman, Biomerieux, Biotechnia, Hitachi, Horiba ABX, IL, J&J, Radiometer, Randox, Roche, Siemens, Stago, Sysmex, Thermo and Tosoh.
LAS, through its entity Diamond Diagnostics, is the only USA FDA registered, ISO Certified and Down-To-Frame® refurbisher of Chemistry, Immunology, Hematology, Caogulation and Blood Gas equipment. Inquire today for pricing and Details.
Every analyzer undergoes a systemized, rigorous and unique Down-To-Frame® Refurbishment process to rebuild each analyzer to its original specification and intended use.
Disassembly & Decommission
- System decommissioned from laboratory and decontaminated
- Preliminary inspection of functionality
- System disassembled Down-To-Frame®
Aesthetic Restoration
- All outer covers, chassis and internal surfaces stripped, sand blasted and prepared for painting
- All prepared surfaces primed and painted with 3 part compound, color matched automotive quality paint
- All original logos and signage are replaced in original appearance
Refurbishment & Reassembly
- All mechanical, pneumatic, electronic assemblies disassembled, cleaned, restored, verified and reassembled, replaced where needed
- Disposable components replaced with new components
- New components include: tubing, fittings, syringes, seals, check valves, probes, reagent lines, waste assemblies and similar items
- System completely reassembled into its original condition in accordance to protocol and established specifications
Diagnostics & Troubleshooting
- Assembly Functions & System errors assessed, troubleshooting and repair conducted
- Full system diagnostic testing conducted
- System successfully calibrated with certified calibrator materials to ensure proper functionality
Performance Validation
- Rigorous Multi-Level Quality Control testing conducted on established parameters using certified control material
- Specific parameter testing available upon request
- System checked for power stability, software revisions and other upgrades
Final Packing
- Required peripherals for operation refurbished or provided new as needed
- System properly flushed, drained, protected and prepared for storage
- System professionally crated with heat-treated and non-coniferous wood for international transit
Performance & Configuration
Assays
114 Total Assays Tested
********(****), *******(****), ***********(***), ***************(******), *********(***), *******(****), ******(****), **************(*****), *********(******), ***********(***), ***************(******), **************(*****), ***************(******), *******(******), **********(******), ***************(*****), ***********(***), ********(******), ********(***), **************(******), *********(******), *********(***), *******(*****), ************(****), ***********(*****), ***********(***), *******(***), ******(****), *******(***), *************(*****), ************(***), ************(*****), ***********(***), *************(***), *********(****), ***********(*****), **********(******), ********(****), ************(***), ************(******), ************(***), *******(******), *********(******), ************(*****), ************(******), *******(******), ************(******), **************(*****), ***************(****), *************(****), ********(***), ************(******), ********(***), ******(***), ***************(******), **********(******), **********(******), ***********(*****), *********(*****), ************(******), ************(***), ***********(******), ***************(*****), *******(******), ********(******), ******(*****), ************(******), ******(******), *******(******), ************(*****), **********(******), ********(******), ************(****), *************(****), ********(*****), ******(*****), ***********(****), **********(*****), **************(****), *********(****), **************(*****), ***************(*****), *************(*****), ***************(****), ***************(***), **************(***), **************(******), ************(******), ******(***), **********(****), **********(******), *********(******), ***************(****), ***********(****), ******(****), *******(******), ***********(****), ***********(***), ********(***), *************(****), ***********(****), *************(***), *************(****), *******(******), **********(*****), **********(******), **********(*****), ********(*****), *******(****), *********(*****), ***************(*****), ***************(***), *******(******), ************(****)
Technical Specifications
| Manufacturer: | Abbott Diagnostics |
| Series: | Alinity |
| Sample Types: | CSF, Hemolysate, Plasma, Serum, Urine, Whole Blood |
| Maximum Throughput: | 1550 tests/hour |
| Sample Size Min: | 1.5 μL |
| Direct Sample (STAT): | Yes |
| Auto Sample Handling: | Yes |
| Sample Input Type: | Sample Cup |
| Reagent Type: | Liquid |
| Reagent System: | Closed |
| Reagent Capacity: | 117 refrigerated reagent cartridges (70 chemistry, 47 immunoassay), plus ICT (Na, K, Cl) |
| On-Board Refrigeration: | Yes |
| Configuration: | Floor Model |
| Height: | 134 cm (53 in) |
| Width: | 199 cm (78 in) |
| Depth: | 117 cm (46 in) |
| Weight: | 1160 kg (2552 lb) |
| Water Requirement: | Yes |
| Water OnBoard Supply: | No |
| Power Supply: | 220V |
| Point Of Care: | No |
All units sold by LAS or units qualified by LAS are eligible for Field Service coverage. Service plans are the best way to maximize your instrument investment and avoid the high costs associated with instrument failure. Our plans are designed to support optimum instrument performance, ensure reproducible results and minimize down-time. Our service plans provide a timely response from our dedicated engineers who are certified on an ongoing basis to ensure top-notch results, even in the most complex laboratory environments.
: Included
: Chargeable
: None
* Contact for more details
Preventive Maintenance
For the laboratory looking to manage manufacture recommended preventative maintenance (PM) schedules for instrumentation at a fixed cost. The PM Service Plan will increase the reliability and reduce the risk and costs of unplanned maintenance and equipment downtime. Our plans are scheduled and planned around your specific instrument and operational needs.
Depot Repair Per Diem
For the laboratory looking to maximize the life of their instrumentation while effectively managing repair costs. The Depot Repair is a per diem plan designed for any size instrument needing major repair, complete rebuild or recycling.
Annual Depot Repair
For the laboratory looking to maximize the life of their instrumentation while effectively managing repair costs. Annual Depot Repair is an annual based plan designed for small to mid-sized instruments needing maintenance or repairs and can be easily shipped by your local carrier to our Depot Service Facility in Holliston, MA.
Phone Support
For the laboratory employing qualified service professionals, the Virtual Plan may be a suitable choice to replace or supplement Field Services. The Virtual plan offers its customers support by email and telephone, within business hours with communication directly with Clinical Engineering staff specialized in the model of instrumentation that the laboratory is utilizing. The Virtual Plan is annual.
Click here to learn more.
The names and logos of manufacturers, their instruments, and their products referred to herein may be protected by trademark or other law, and are used herein solely for purpose of reference. Products are available for international distribution only unless otherwise indicated. Laboratory Advanced Solutions expressly disclaims any affiliation with products it does not manufacture, as well as sponsorship by other manufacturers. For current regulatory status on products within this website, please contact your sales representative. Prices and Information shown are for reference only and may change without notice. SmartLyte®, ProLyte®, CareLyte®, and Down-To-Frame® Refurbishing are Registered Trademarks of Diamond Diagnostics®. No mobile information will be shared with third parties/affiliates for marketing/promotional purposes. All the above categories exclude text messaging originator opt-in data and consent; this information will not be shared with any third parties.
